Specialized LED Lighting Control Solutions

From high-power strobes to multi-channel lighting control. We provide one-stop development of specialized LED lighting control boards tailored to your specifications.

Features of LED Lighting Control Board Development

High-Power, High-Precision Strobe Flashing

For customers seeking stability and precision in inspection and photography.

We achieve extremely stable, high-power strobe flashing even at millisecond-cycle flashing. Highly reproducible light is essential for high-precision inspection and photography without missing any defects.

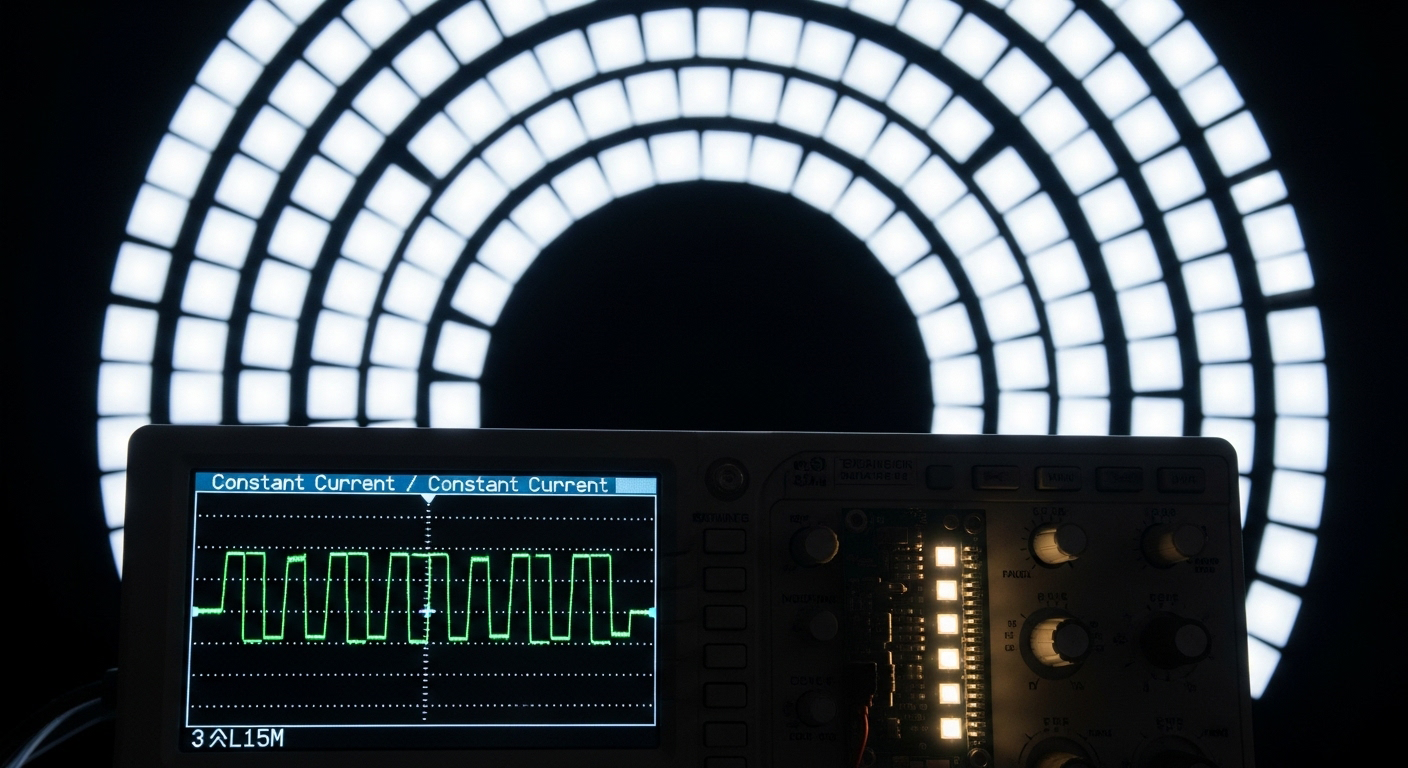

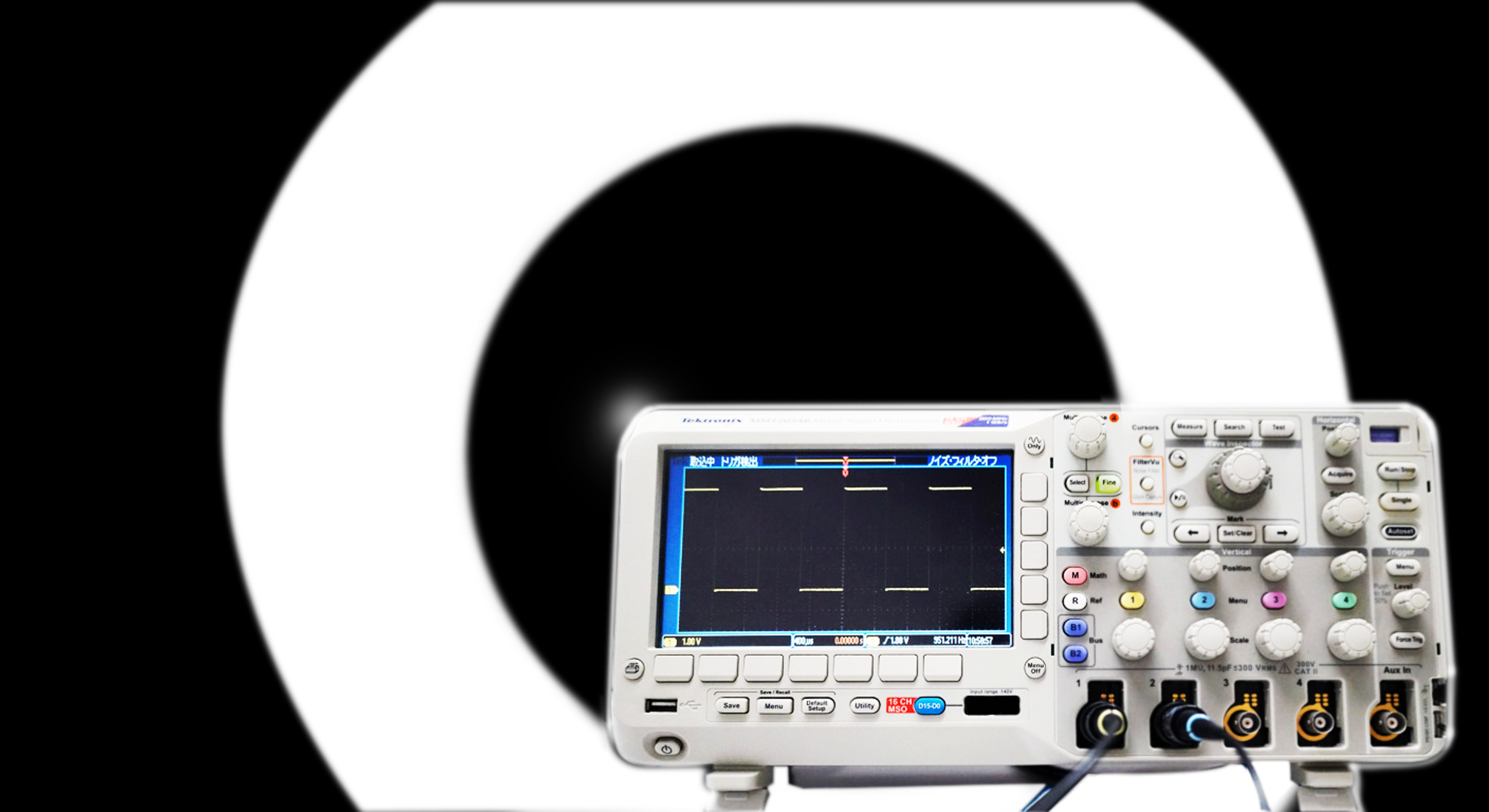

High-Precision Constant Current/Constant Voltage

For customers requiring stable illumination and multi-channel control.

We design constant current/constant voltage driver circuits that maximize LED performance. Individual control of multiple channels and flexible setting of illumination patterns are possible.

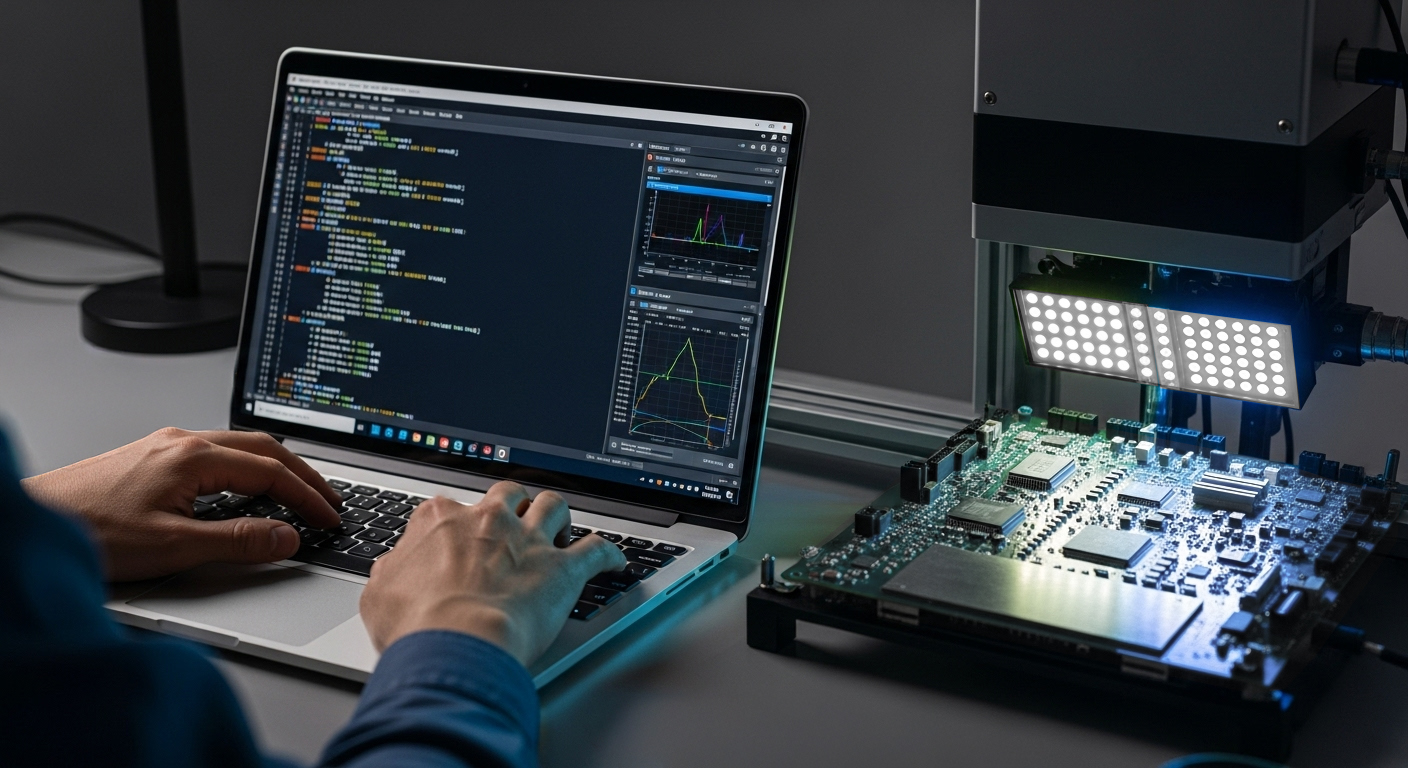

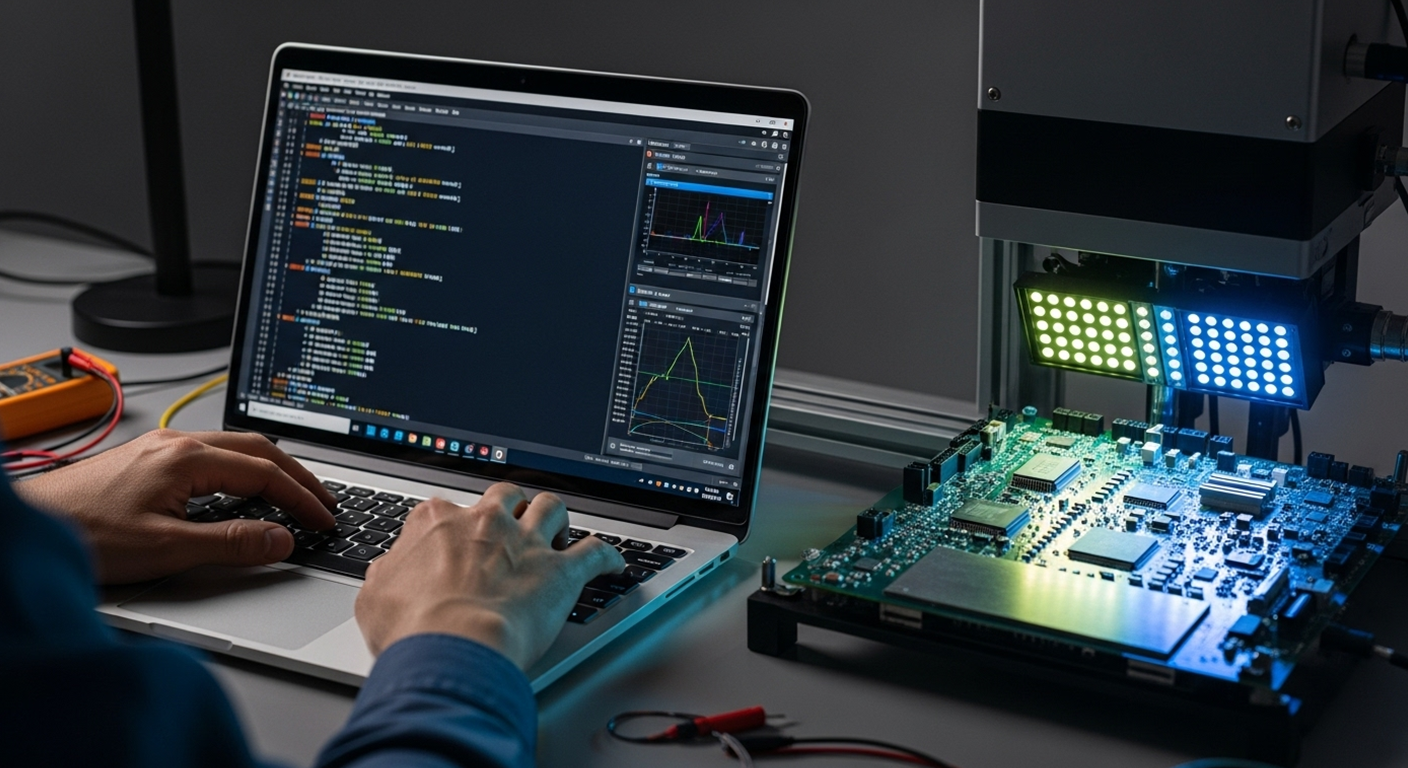

Flexible System Integration

For customers seeking seamless integration with existing systems.

We provide optimal light control for your system with illumination synchronized with cameras and external sensors. We generate illumination patterns through software or hardware control and flexibly support I/O control linked to illumination, such as synchronization with camera shutters and external sensors. We realize seamless integration into your existing system.

Development Achievements & Application Examples

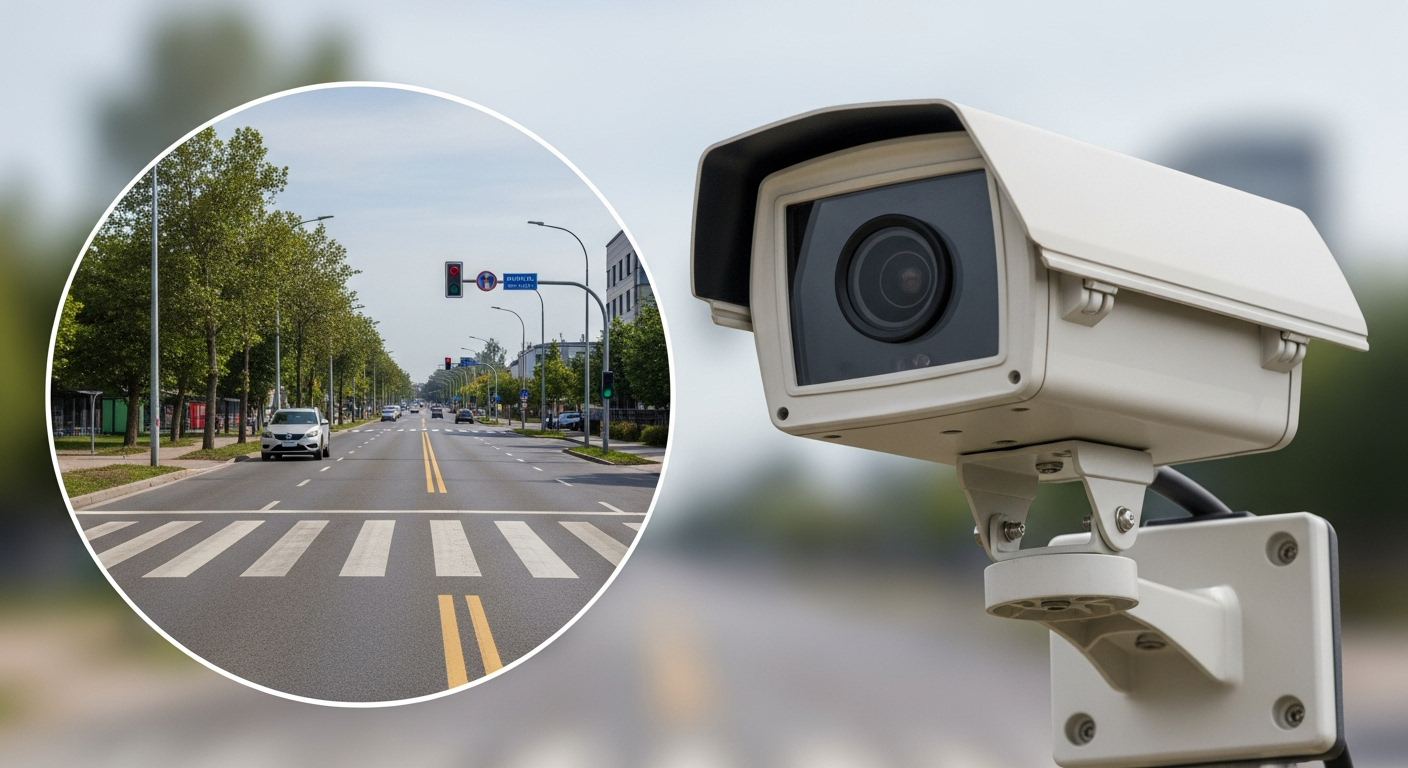

Infrared Flash for Surveillance Cameras

A high-power infrared strobe board that enables clear photography even at night or in bad weather. It contributes to improving the recognition rate of license plates.

Lighting for AOI Inspection Equipment

To accurately detect product defects, we provide multi-channel, flicker-free lighting optimized for the workpiece. Flexible illumination patterns also contribute to shortening inspection cycle times.

LED Drive Design Experience

We have developed and provided lighting control boards with the following specifications to meet the diverse needs of our customers.

Output Voltage	Output Current	Lighting Timing/Control

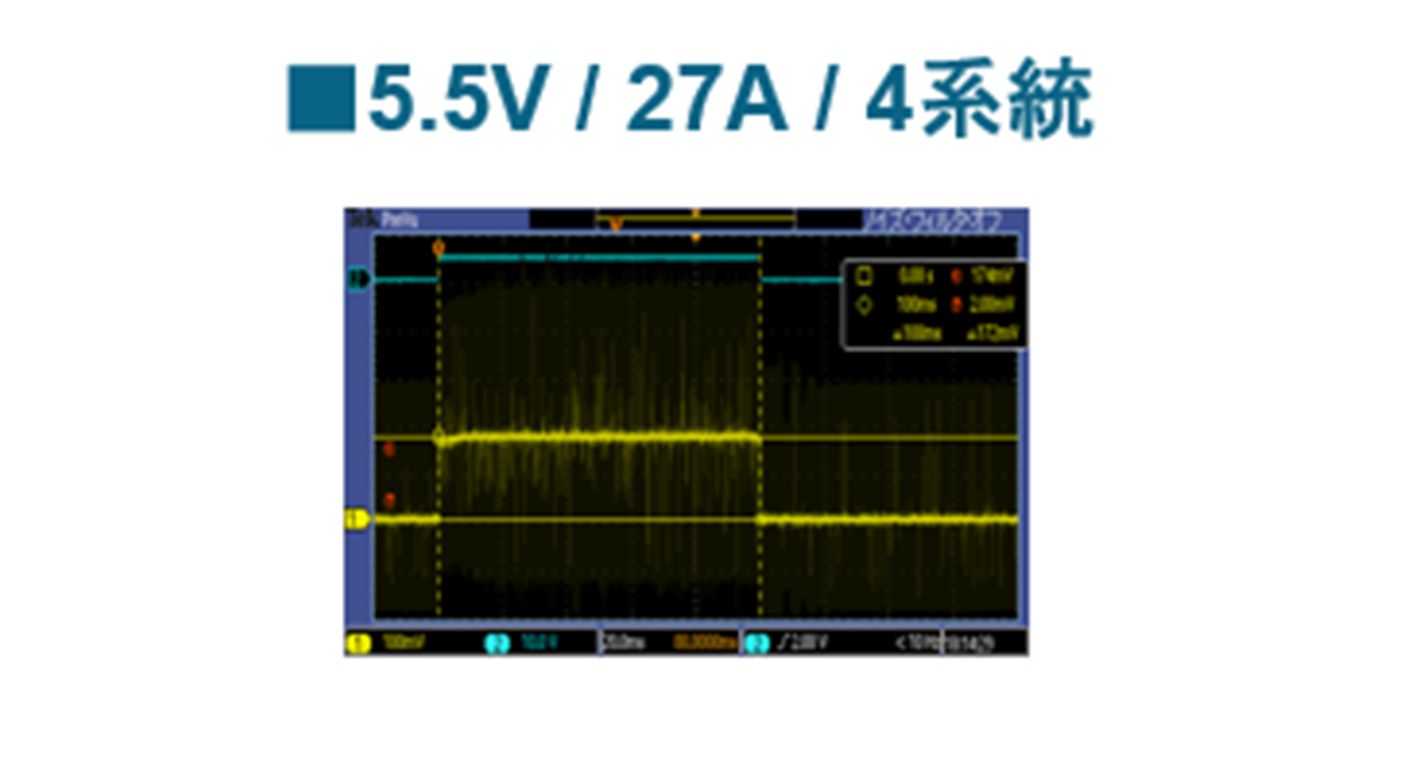

DC 5.5V	Max 27A	Software Preset
DC 24V	Max 2.9A	Software Preset
DC 48V	Max 2A	External Trigger Sync
DC 48V	Max 2A	30Hz Cycle Lighting
DC 108V	Max 0.7A	External Trigger Sync
DC 108V	Max 0.7A	30Hz Cycle Lighting
